Vacuum packaging machine

  • Main mechanism composition： 1.Loading conveyor – belt conveyor
    2.Aluminum foil Bag storage
    3.Upper and lower heating of seals
    4.Label printing and labeling functions
    5.CCD function
    6.Pick and place
    Product placement by cylinder mechanism
    Two-axis servo-motor loading and unloading mechanism
    7.Machine main structure is built with stainless steel, with an aluminum extruded frame and PVC boards

  1. Inquiry
  2. Back to List
  3. Prev
  4. Next
  • Process
  • Specifications
  • Video





Model SVA-2510-I
Machine dimensions 2600mm (L) x 2000mm (W) x 1900mm (H)
Main application Automatic tray packaging
Tray material PPE/MPPO
Tray dimensions Length：322.1 +/- 0.25mm
Width：135.6 +/- 0.25mm
Height (thin)：7.62 +/- 0.1mm
Height (thick)：12.19 +/- 0.1mm
Applicable Aluminum Foil Bags Specified by client - same type of specification
Max. stacking tray height Height (thin) 11 tray height: 89mm (inclusive) or less (include corrugated board)
Height (thick) 7 tray height: 87mm (inclusive) or less (include corrugated board)
Vacuum value MIN 450mm-Hg ~ MAX 530mm-Hg
Sealing dimensions Max. length 550 mm , Sealing width 10mm
Vacuum pump pressure Max 600mm-Hg
Heating sealing mechanism Sealing temperature display, over-temperature alarm, and heater power-off function

Automatic vacuum packaging line Automated TRAY Packing Systems

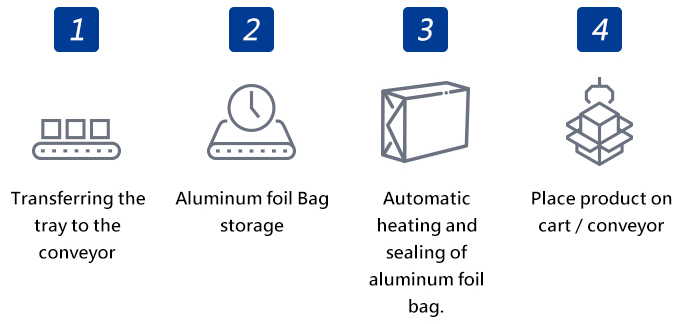

Process：
  1. Loading tray to buffer conveyor
  2. Robot picks up trays on to automatic loader
  3. Put the desiccant and humidity indicator card on the tray
  4. Automatic strapping long side of tray
  5. Automatic strapping short side of tray
  6. CCD checking
  7. Vacuum packaging
  8. Place labels
  9. Complete process
Advantages：
  • Fully automatic
  • CCD inspection system
  • IOT industry 4.0
  • Can report to MES system
  • Reduce labor cost, improve production efficiency
