Automated inspection machinery
- Suitable for：Si wafer
- Main mechanism composition：1.Loading 1
2.Loading 2
3.OK1
4.OK2
5.NG
6.Discard
7.Manual inspection
8.Automatic inspection
Inquiry
Back to List
Prev
Next

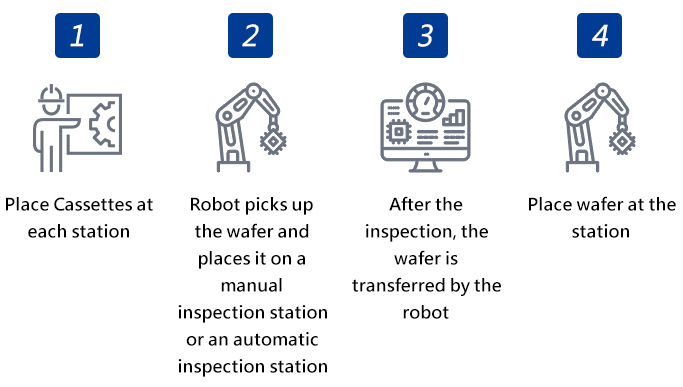

- Process
- Advantages
- Specifications
- High efficiency
- No scratches on the wafer
- Wafer data storage
| Model | WGR1720-6 |
|---|---|
| Machine dimensions | ~1700mm (L) x 2200mm (W) x 2000mm (H) |
| Power supply | Single phase 220VAC 50HZ |
| Air pressure | 5kg/cm^2 |
| Vacuum | -80kpa |
| Machine weight | ~820kg |
| Control system | PLC |
| Operation Interface | Industrial computer host/monitor + touch screen |
